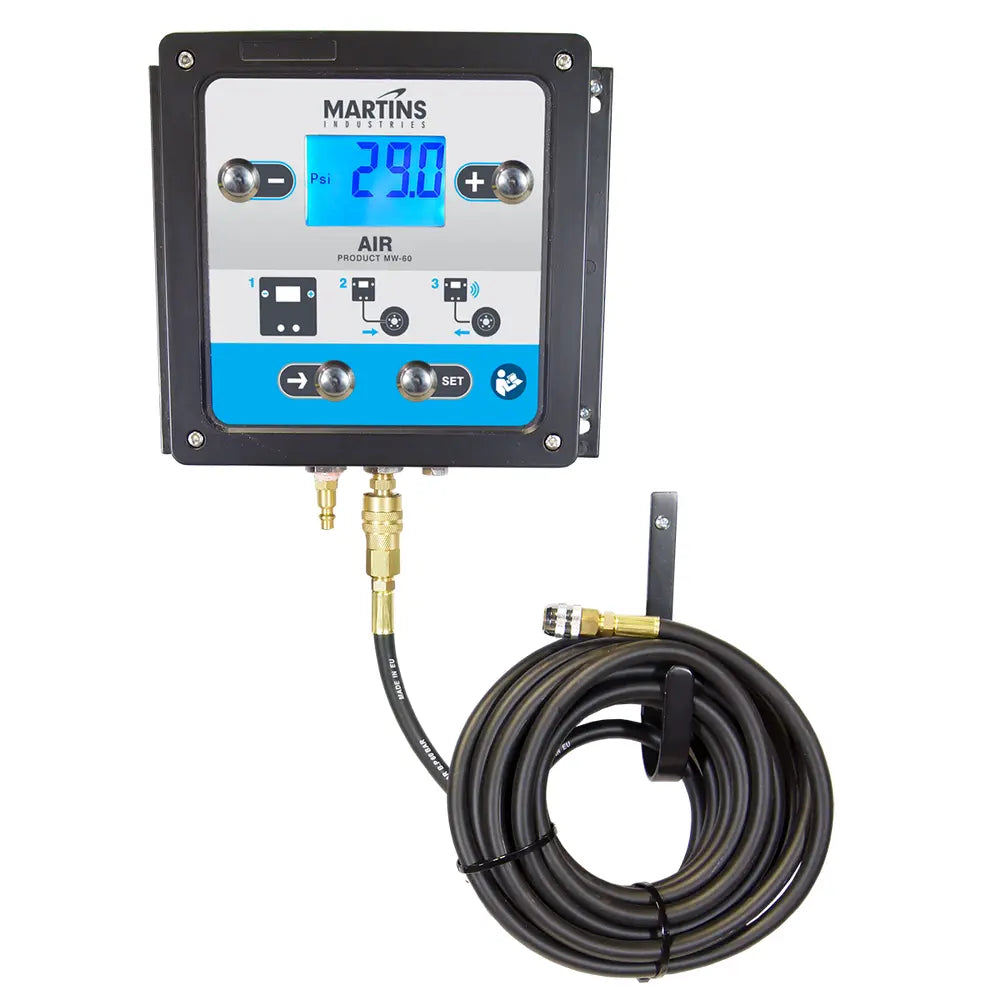

Flatematic Single - Automatic tire inflator 1 outlet
Flatematic Single - Automatic tire inflator 1 outlet
Flatematic Single - Automatic tire inflator 1 outlet
Flatematic Single - Automatic tire inflator 1 outlet

Flatematic Single - Automatic tire inflator 1 outlet

  • SKU: MW-60

Inflate or deflate your tires automatically up to 145 psi.

  • Wall-mounted unit with 25’ air hose to easily reach all tires on the vehicle.
  • Only 2 min. 20 sec. to inflate a 11R22.5 tire from 0 to 100 psi.
  • Loud audible signal warns you that the tire has reached the desired pressure.
  • 4 measurement units (psi, bar, kPa, kg/cm2), overpressure system (OPS), LCD screen & backlight.
The Flatematic Single is a single outlet automatic tire inflator that will automatically start inflation or deflation once it is connected to the tire valve to precisely reach the selected pressure. Its clip-on chuck makes tire inflation more productive by allowing you to work away from the tire.

*Air compressor required.
Important: compressed air contains water and oil, use proper air filter between the source and device. Failure to do so will void the warranty.

Specifications:
Included
  • 25’ air hose with 1/4" NPT open chuck
  • Quick coupling 1/4'' industrial
  • Air hose support hook
  • M6x38 screws (5x)
  • User manual
Features
Fixed, Wall-mounted, Over pressure setting (OPS), Nitrogen compatible (n2)
Materials
Aluminium
Color
Black and blue
Air compressor required
Yes
Air pressure - max. outlet (psi)
145
Air pressure - max. inlet (psi)
150
Reading accuracy (psi)
0.29
Airflow - max. (l/min)
2600
Airflow - max. (CFM)
92
Hose quantity
1
Hose length (inches)
300
Hose length (cm)
760
Chuck type
Open
Certifications
CE
Calibration certified
Yes
Autocalibration
Yes, on every unit start
Maintenance & calibration service
Yes
Degree of protection
IP66
Supply voltage
110
Product dimensions - LxWxH (inches)
9 x 10 1/2 x 3 1/2
Product dimensions - LxWxH (cm)
20 x 27 x 9
Net weight (kg)
6
Net weight (lb)
14
Package dimensions - LxWxH (inches)
12 x 12 x 9
Package dimensions - LxWxH (cm)
31 x 31 x 23
Gross weight (kg)
7
Gross weight (lb)
15
Warranty
1 year warranty

User Manual

Certifications

Spare Parts

$483.07 $508.49
